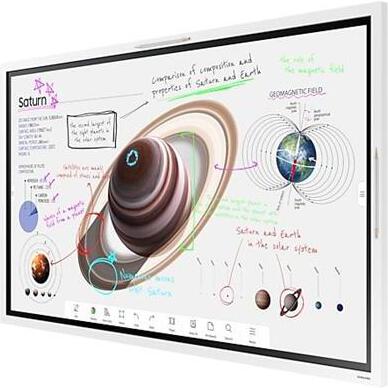

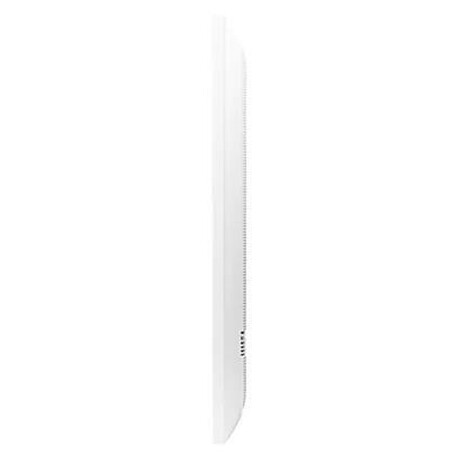

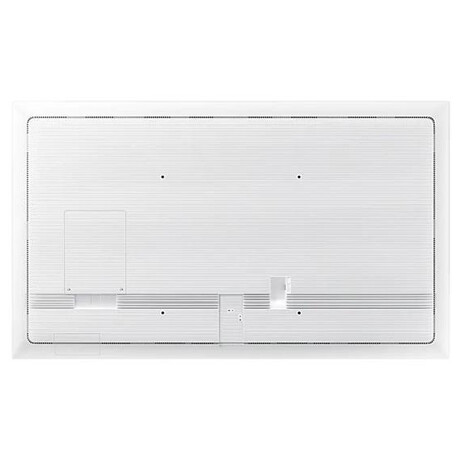

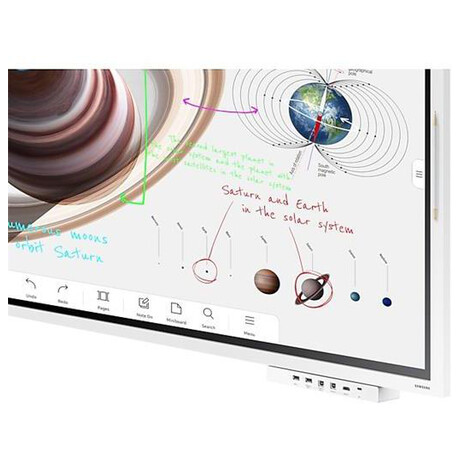

WM55B flip Samsung

Diagonal Size

55"

Panel Type

VA

Resolution

3,840 x 2,160

Pixel Pitch (HxV)

0.315 x 0.315

Brightness (Typ)

350cd/m2 (w/o glass), 220cd/m2 (w/glass)

Contrast Ratio

Viewing Angle (H/V)

178/178

Response Time

8ms

Colour Gamut

72%

Glass Haze

2%(without glass)

H-Scanning Frequency

30~81 khz

Maximum Pixel Frequency

594Mhz

V-Scanning Frequency

48~75 Khz

Dynamic Contrast Ratio

N/A

Operation Time Support

16/7

Connectivity

HDMI In

2

DP In

1

DVI In

N/A

Version of HDMI

2

Version of DP

1.2

Version of HDCP

2.2

Tuner In

N/A

USB

1(Rear), 3 (with optional front tray, Internal 1, External 1, USB-C 1)

IR In

N/A

HDBaseT In

N/A

Audio In

N/A

Audio Out

Stereo Mini Jack

Video Out

N/A

Power Out

N/A

RS232 In

Yes

RS232 Out

N/A

RJ45 In

Yes

RJ45 Out

N/A

WiFi

Yes

3G Dongle

N/A

Bluetooth®

Yes

Power

Power Supply

AC100-240V 50/60Hz

Power Consumption (Off Mode)

N/A

Power Consumption (On Mode)

154W

Power Consumption (Sleep Mode)

0.5W

Dimension

Set Dimension (WxHxD)

1297.4 x 768.2 x 59.9 mm

Package Dimension (WxHxD)

1464 x 915 x 190 mm

Weight

Set Weight

28.6 kg

Package Weight

35.9 kg

Operation Conditions

Temperature

0?~40?

Humidity

10 ~ 80%, non-condensing

Mechanical Specification

VESA Mount

400 x 400 mm

Bezel Width

26.2

Frame Material

Plastic

Optional Feature

Touch

Yes

Mount

Stand

SoC

OS Version

Tizen 6.5

Flash Memory Size

32GB
