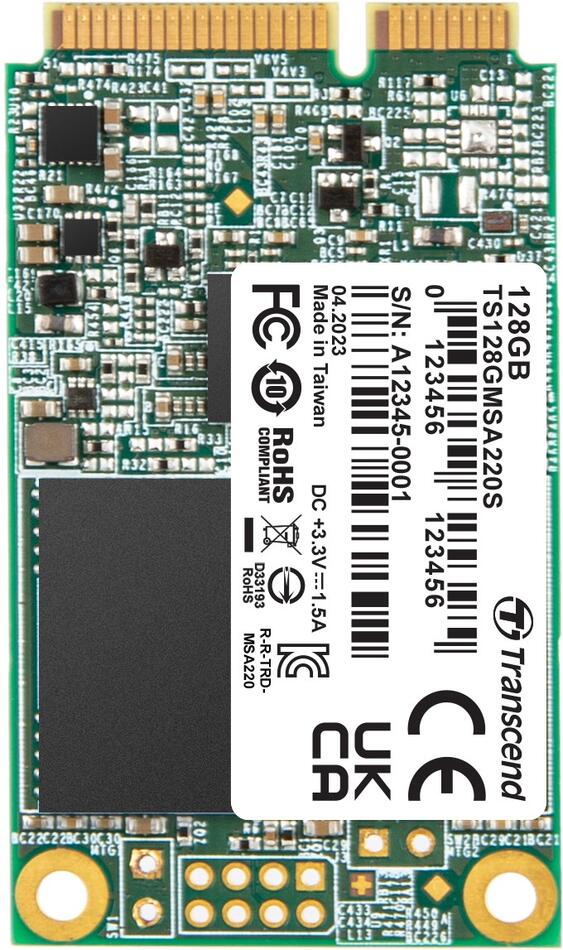

TRANSCEND MSA220S 128GB SSD disk mSATA, SATA III 6Gb/s (3D TLC), 560MB/s R, 500MB/s W (TS128GMSA220S)

TRANSCEND MSA220S 128GB SSD disk mSATA, SATA III 6Gb/s (3D TLC), 560MB/s R, 500MB/s W

Features

3D NAND flash memory

Advanced Global Wear-leveling and Block management for reliability

Built-in LDPC ECC (Error Correction Code) functionality

Supports Advanced Garbage Collection, S.M.A.R.T. function, and Security Command

Supports TRIM and NCQ commands

Appearance

Dimensions 50.8 mm x 29.85 mm x 4.85 mm (2.00" x 1.18" x 0.19")

Weight 8 g (0.28 oz)

Interface

Bus Interface

SATA III 6Gb/s

Storage

Flash Type

3D NAND flash

Capacity

128 GB

Operating Environment

Operating Temperature 0°C (32°F) ~ 70°C (158°F)

Operating Voltage

3.3V±5%

Performance

Sequential Read/Write (CrystalDiskMark)

Up to 560/500 MB/s

4K Random Read/Write (IOmeter)

Up to 43,000/82,000 IOPS

Terabytes Written (TBW)

41 TBW

Mean Time Between Failures (MTBF) 2,000,000 hour(s)

Drive Writes Per Day (DWPD) 0.3 (3 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Terabytes Written (TBW) expresses the endurance under the highest capacity.
