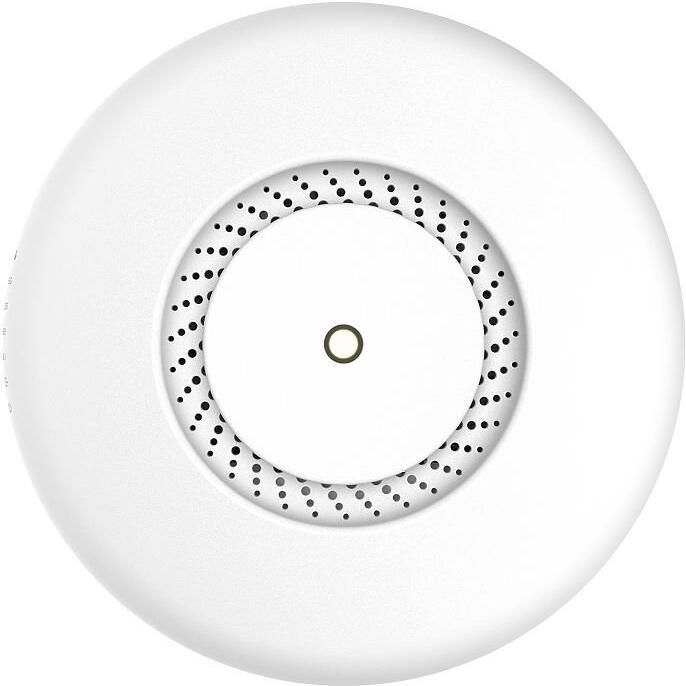

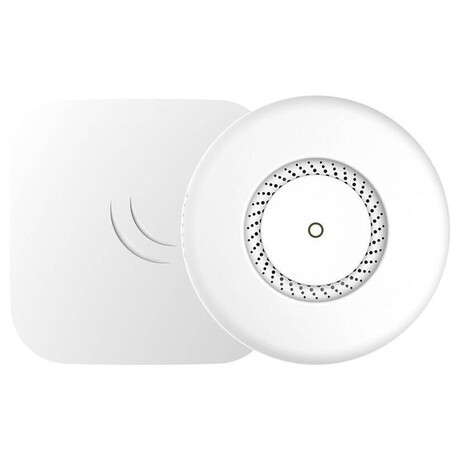

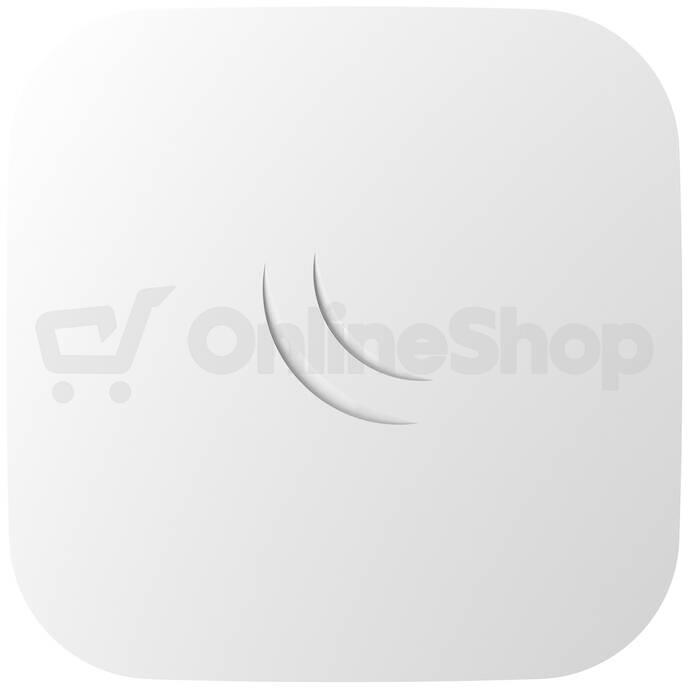

MikroTik RouterBOARD RbcAPGi-5acD2nD, cAP ac

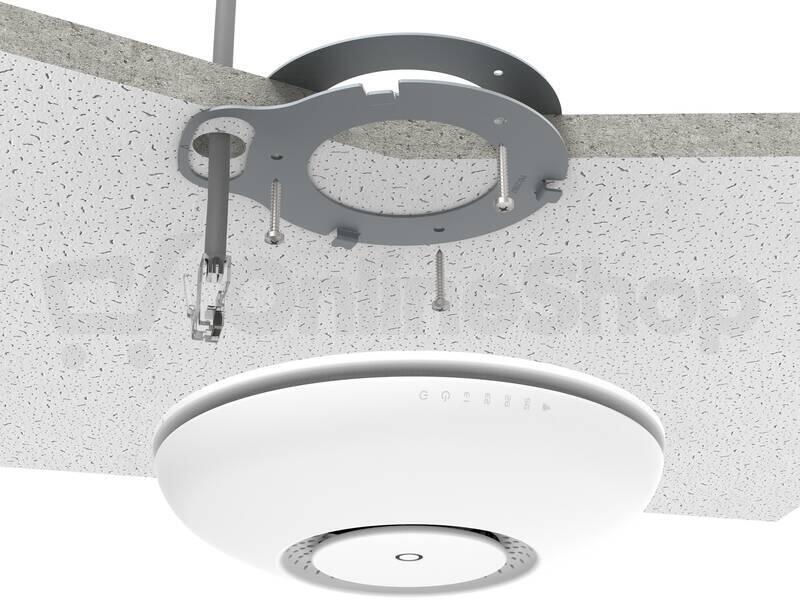

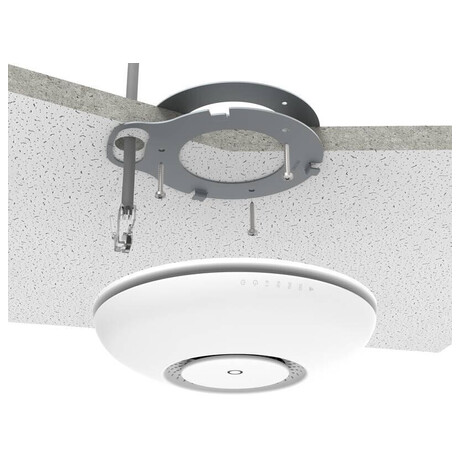

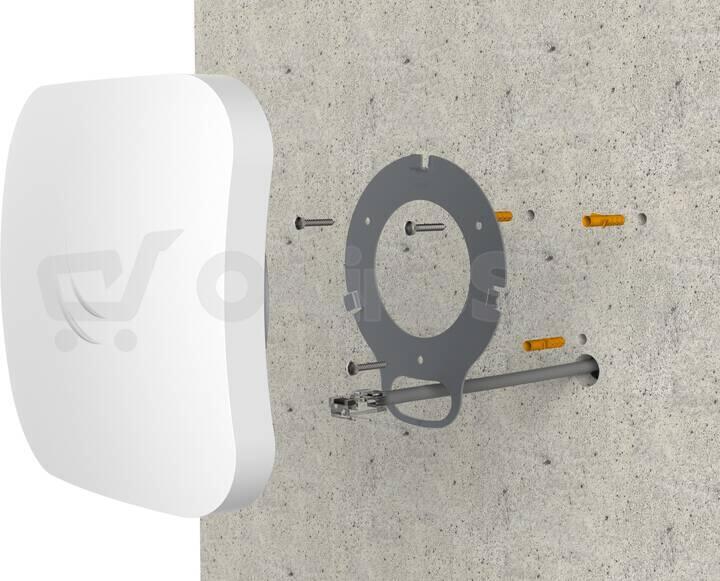

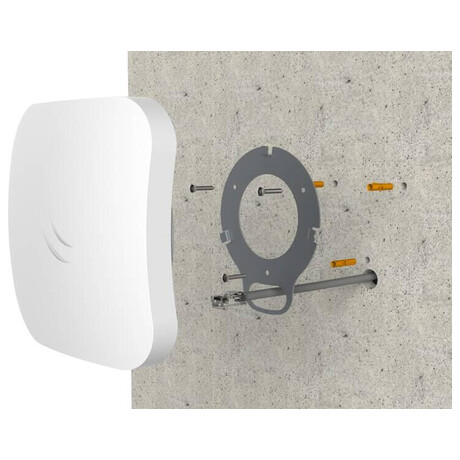

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz and 5 GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port.

Specifications

Details

Product code RBcAPGi-5acD2nD

Architecture ARM 32bit

CPU IPQ-4018

CPU core count 4

CPU nominal frequency 716 MHz

License level 4

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

Tested ambient temperature -40 to 50° C

Powering

Details

Max Power consumption 13W

PoE in 802.3af/at

PoE out Passive PoE up to 57V

PoE in input Voltage 17-57 V

Number of DC inputs 1 (PoE-IN)

Wireless

Details

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 2

Wireless 2.4 GHz chip model IPQ-4018

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11ac

Antenna gain dBi for 5 GHz 2.5

Wireless 5 GHz chip model IPQ-4018

Ethernet

Details

10/100/1000 Ethernet ports 2
